Foundations on Clay Soil

Building a strong foundation is crucial when constructing a structure on clay soil. Clay soil can be challenging due to its high water content and tendency to expand and contract with changes in moisture levels. However, with proper planning and techniques, it is possible to create a stable foundation that will support your building for years to come.

In this comprehensive guide, we will explore the key considerations and best practices for constructing foundations on clay soil, as well as the potential issues that can arise when proper foundation techniques are not employed.

Understanding Clay Soil Behavior

Clay soil is composed of fine mineral particles that are tightly packed together. When wet, clay soil can become saturated and lose its bearing capacity, leading to settlement and potential damage to the structure above. Conversely, when dry, clay soil can shrink and crack, causing uneven settling and foundation movement.

To mitigate these challenges, it is essential to understand the specific properties of the clay soil on your building site. Conducting a thorough soil analysis and consulting with a geotechnical engineer can provide valuable insights into the soil’s composition, moisture content, and potential for expansion and contraction.

Soil Analysis and Site Preparation

Before beginning construction, it is crucial to conduct a comprehensive soil analysis to determine the appropriate foundation design. This analysis should include:

– Soil classification tests to identify the type and properties of the clay soil.

– Moisture content tests to assess the soil’s current water levels.

– Expansion and shrinkage tests to evaluate the soil’s potential for movement.

Once the soil analysis is complete, the site must be properly prepared. This may involve removing any organic matter, such as tree roots or vegetation, and ensuring the soil is compacted to the appropriate density.

Foundation Design and Construction

Based on the soil analysis results, a suitable foundation design can be selected. Common foundation types for clay soil include:

Reinforced concrete slabs: These are solid, monolithic concrete slabs that are reinforced with steel to provide additional strength and resistance to movement.
Pier and beam foundations: This design involves constructing a series of piers or columns that extend below the frost line and are connected by a network of beams. This method helps to distribute the weight of the structure evenly and minimizes the impact of soil movement.
Helical piles: These are screw-like steel shafts that are driven into the ground to support the foundation. Helical piles can be an effective solution in areas with expansive clay soil, as they can be installed to a depth that provides stability.

During construction, it is essential to follow best practices to ensure the foundation’s integrity. This includes:

– Proper site drainage to divert water away from the foundation.

– Adequate reinforcement of concrete to prevent cracking and movement.

– Careful placement and compaction of fill material around the foundation.

Issues with Building on Clay Soil Without the Correct Foundation

Constructing a building on clay soil without implementing the appropriate foundation techniques can lead to significant structural issues. Understanding these potential problems is essential for anyone involved in construction, whether you are a homeowner, builder, or architect. Below, we explore the primary issues that can arise when foundations are inadequately designed for clay soil conditions.

1. Differential Settlement

One of the most common issues associated with building on clay soil is differential settlement. This occurs when different parts of a structure settle at different rates due to the varying moisture levels in the clay soil beneath. As clay soil expands when wet and contracts when dry, areas of the foundation may experience more stress than others, leading to uneven settling. This can result in:

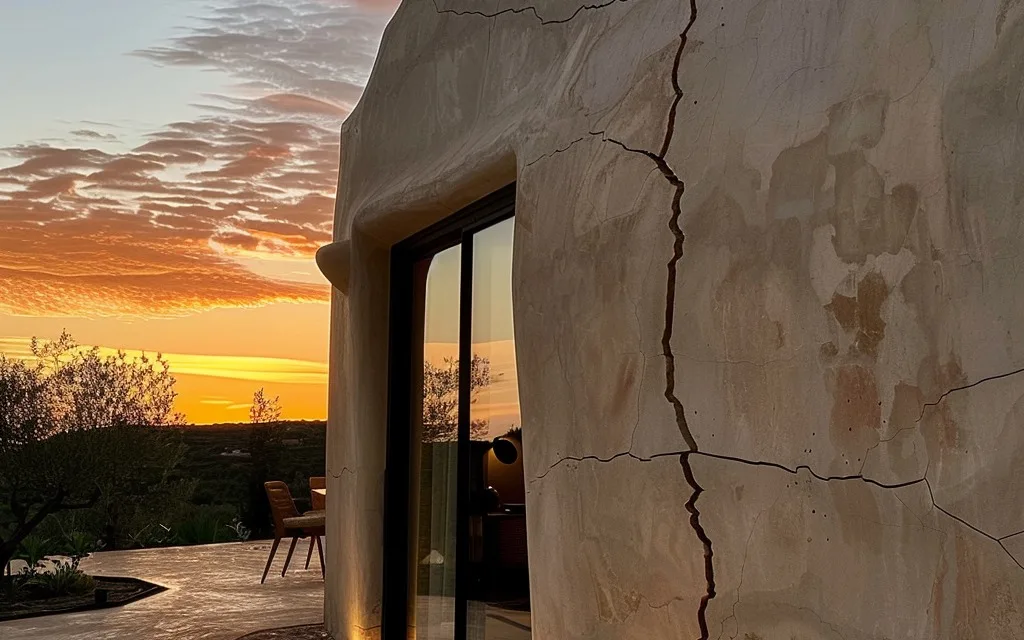

– Cracks in walls and foundations: As the foundation shifts, it can cause visible cracks in the structure, which may compromise its integrity.

– Doors and windows that stick: Uneven settling can lead to misaligned frames, making it difficult to open or close doors and windows properly.

– Sloping or uneven floors: As parts of the foundation settle at different rates, floors may become uneven, posing safety risks and aesthetic concerns.

2. Soil Heave

Another significant issue is soil heave, which occurs when clay soil expands due to increased moisture content. This can happen for various reasons, including poor drainage, heavy rainfall, or the removal of nearby trees that previously helped regulate soil moisture levels. The expansion of the soil can push the foundation upwards, leading to:

– Structural damage: The pressure exerted by heaving soil can cause severe damage to the foundation, including cracking and displacement.

– Increased repair costs: Addressing the damage caused by soil heave can be costly and time-consuming, often requiring extensive repairs or even complete foundation replacement.

3. Subsidence

Subsidence refers to the sinking or settling of the ground beneath a structure, often caused by the shrinkage of clay soil during dry periods. This phenomenon can be exacerbated by factors such as:

– Drought conditions: Prolonged dry spells can lead to significant soil shrinkage, reducing the support available for the foundation.

– Tree roots: Trees can extract moisture from the soil, leading to further shrinkage and potential subsidence of the foundation.

The consequences of subsidence include:

– Foundation instability: As the foundation loses support, it may become unstable, increasing the risk of structural failure.

– Visible damage: Similar to differential settlement, subsidence can cause cracks in walls and floors, leading to costly repairs.

4. Increased Maintenance and Inspection Needs

Buildings constructed on clay soil without proper foundations often require more frequent maintenance and inspections. Homeowners may need to invest in:

– Regular monitoring: Keeping an eye on cracks, settling, and other signs of foundation issues can help catch problems early, but it requires time and diligence.

– Repair costs: Ongoing maintenance and repairs can add up, making it essential to budget for these potential expenses when building on clay soil.

5. Compromised Structural Integrity

Ultimately, the most severe consequence of inadequate foundation design on clay soil is the compromise of structural integrity. When a building’s foundation is not suited to the unique challenges posed by clay soil, the entire structure can be at risk. This can lead to:

– Safety hazards: Structural failures can pose significant safety risks to occupants, making it crucial to address foundation issues promptly.

– Decreased property value: Homes with known foundation issues often suffer from decreased market value, making them harder to sell and less desirable to potential buyers.

Ongoing Maintenance and Monitoring

Even with a well-designed and constructed foundation, it is essential to monitor the structure for signs of movement or damage over time. Regular inspections and maintenance can help identify and address any issues before they become major problems.

Some key maintenance tasks include:

– Regularly inspecting the foundation for cracks, settling, or other signs of distress.

– Ensuring proper drainage around the foundation and addressing any water issues promptly.

– Maintaining a consistent soil moisture level around the foundation to prevent excessive expansion or contraction.

Conclusion

Building on clay soil, particularly in regions like Andalucia, Spain, poses significant challenges due to the soil’s tendency to shrink and swell with moisture changes. This can lead to issues such as differential settlement, soil heave, and structural damage. To mitigate these risks, it is crucial to conduct thorough soil testing, consult with geotechnical experts, and implement tailored foundation designs. Effective strategies include constructing deeper and wider foundations, using flexible membranes, and reinforcing structures with steel. By proactively addressing these challenges, builders and homeowners can enhance the stability and longevity of their properties, safeguarding their investments and ensuring occupant safety.
